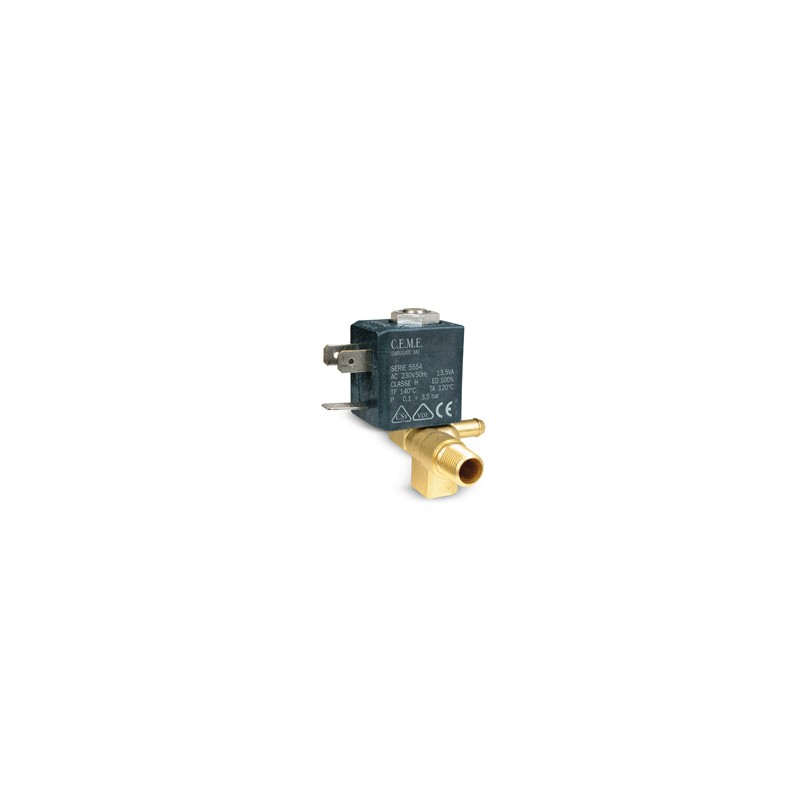

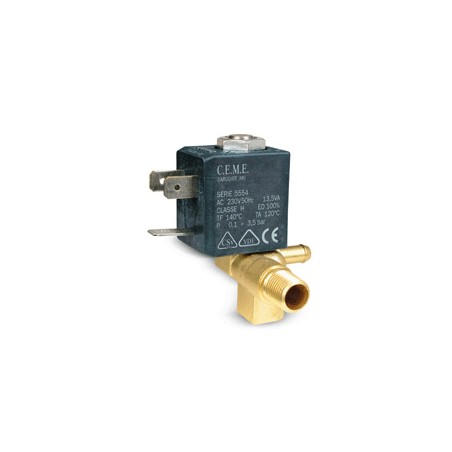

Direct acting solenoid valve r 1/8 220v

Ironing and cleaning solenoid valves
- 2/2-way valve nc
- direct action r 1/8 (conical gas) hose nozzle outlet with g 1/8 connection - female dn 2,0 2,4mm.
- the position of the pressure switch shown in the photo is to be considered purely indicative

- structural characteristics
- brass hydraulic body uni en 12165: 98 cw 617n
- incoming attack r 1/8.
- outlet connection: hose connector
- epdm rubber seal
- electrical connections: 6.3 x 0.8 fast-on terminal.
- insulation class i in compliance with en 60 335-1.
- vde approvals; there is;

performance
- steam fluids
- max steam pressure 3.5 bar
- power 230 v 50 - 60hz
- absorption 13.5 goes in compliance with en 60 335-1
- heating class h (180 ° c) in compliance with en 60 335-1 and approvals and% 100% continuous use
- max ambient temperature: ta = 120 ° c class h (in compliance with approvals)
